Tower Light Header
Tower Light Details
Features
Full sized, 30 ft (9.1 m) extended height floodlight Tower illuminates 7-1/2 acres

Galvanized tower is 360 degree rotatable for easy aiming from the ground.

Winch handles ergonomically for easy raising and lowering. Winch drum is inside cabinet. Electric winch available.

Light fixtures mount securely on mast for travel or can be on cross arm.

Pallet pockets and lifting eye make unit easier to load and unload.

Plug in ballast is installed in galvanized steel boxes.

Light fixtures plug into weatherproof receptacle box with UL And CSA approved connectors.

Retractable power cord automatically recoil into protective sleeve to Prevent damage when raising, lowering and moving tower.

Control panel located inside cabinet, protected from the elements.

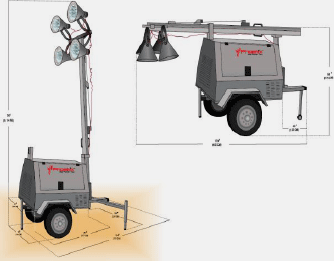

Tech Specs 3

Specifications
Lamps Metal halide 4 x 1,000 W
Generator Brushless 50 Hz, 8.0 kW
Engine Lister Petter LPW2
Fuel capacity 30 gal (114 L)
Wheel size 15 in (38 cm)
Axle rating 3500 lbs (1,588 kg)
Tongue weight travel position 100 lbs (45 kg)
Total weight no fuel 2,050 lbs (930 kg)
Tower Light GenSet

Tower Specs

Tower Specs2
